DUMB WAITER

Top Quality

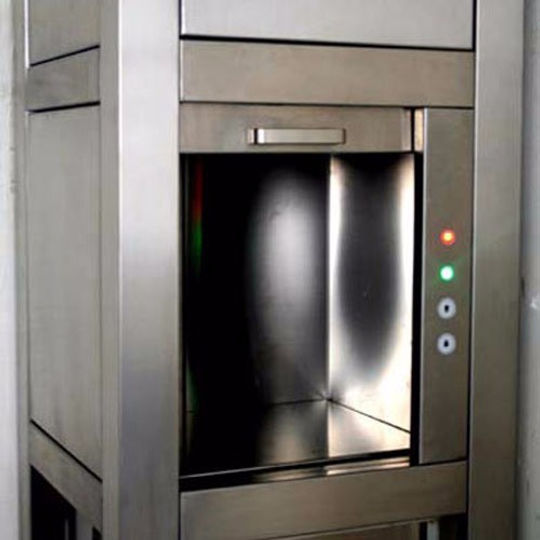

Dumbwaiters are small freight Elevators (or lifts) not intended to carry People or live Animals, but for Objects.

Dumbwaiters Carry food, raw materials and plates from Kitchen to Room, kitchen to kitchen or from kitchen to the place of serving or various pantries at all floors in multi-storied hotels, large households, marriage halls, restaurants, etc. The cabin and the doors of all the dumbwaiters are manufactured using Stainless Steel. The vertical bi-parting doors are well suited to optimize the space utilization.

Dumbwaiters are also used in hospitals and departmental stores to carry stores to various levels in the building. The Dumbwaiter travel so smoothly that each time it travels you can ensure no damage to your valuable crockery.

We can also fabricate the entire shaft of the dumbwaiter.



Capacities

100 Kgs

150 Kgs

200 Kgs

250 Kgs

Speed / Drive

0.30 / 0.60/ 1.00 metre per second

Drive

A.C. VVVF

Car

Mild Steel (Spray Painted) or Stainless Steel

Landing Doors

Mild Steel (Spray Painted) or Stainless Steel
Vertical lifting type or vertical bi-parting type

Control

Call & Send Systems

Indicators

'Car Here' indication







Features



Geared Traction Machine

We use precision made geared traction machines to serve the lift industry. These machines uses AC induction Motor and Worm Wheel Reduction Gear Box. These Machines are made for Long life and durability. The High Quality Lubricant used to increase the Life of the Machine.

Gearless Traction Machine

We use precision made High Torque PMSM gearless traction machines. These Machines are highly efficient and consumes less Power as compared to Geared machines. These machines are Sealed and do not require Oil Change.

VVVF Drive

The VVVF Drive used in the Elevator Results in Smooth Start and Smooth Stop of the Elevator ensuring comfortable feeling. This drive also helps reduce power consumption upto 30% and also increases the life of the Equipment.

Control Panel

The Down Collective Control Panel uses logic to collect the Passenger while travelling in the direction of travel thereby reducing power consumption and waiting time. The Controller along with VVVF Drives reduces power consumption and also saves time.

Fittings

This Series of Elevator is fitted with Flat Panel LED lights in the Cabin, Modern Push Buttons, Scrolling Dot Matrix Led indicator for Direction, Seven Segment Position Indicators.
